Cold storage foundations: stopping frost heave before it lifts the floor

A cold store is not a warehouse with a chiller bolted on. A frozen store may operate at minus 18 to minus 25 degrees for the life of the building, and that changes what has to happen in the ground beneath it. Without suitable frost protection, heat loss through the floor can gradually bring the subgrade below freezing.

Where frost-susceptible soil and a supply of moisture are also present, ice lenses can form and lift the floor. The damage may take years to become visible. By then the slab may be cracked, racking may be out of plumb and insulated doors may no longer seal. Remediation can require extensive floor replacement, so the risk has to be addressed before the first pour.

Why a freezer floor heaves

Frost heave is not primarily a concrete problem. It develops where three conditions coincide: freezing temperatures reach the subgrade, the soil is frost-susceptible, and moisture can feed the freezing front. Fine-grained soils are generally more vulnerable than free-draining granular material, but the ground investigation and thermal design must establish the risk for each site.

As water freezes in the soil, more moisture can be drawn towards the freezing front and form an ice lens. Continued ice-lens growth displaces the ground above it and can push the slab upward.

The forces involved can crack a reinforced slab and disturb doors, insulated panels, racking or structural elements. An ice lens can take years to establish, but once established it is powerful and difficult to reverse. A floor that performs correctly at handover is therefore not proof that its long-term frost protection is adequate.

Insulation buys time, it does not stop it

The instinct is to reach for more insulation. Pile enough board under the slab and surely the cold never reaches the ground. It is a reasonable thought and it is wrong, and the trade body that specialises in this says so plainly.

The Institution of Refrigeration’s guidance on frost heave in cold rooms and cold stores (Good Practice Guide 12) puts it in one sentence: “Insulating a cold room or cold store floor will delay the onset of the problem but not prevent frost heave from occurring.” Insulation reduces heat flow, but it is not an indefinite source of heat. Where the ground conditions can support ice-lens formation, insulation alone should not be assumed to remove the long-term risk.

To actually prevent frost heave, the heat being pulled down out of the ground has to be put back. That is the part a standard industrial floor specification never has to think about, and it is where cold store foundations become specialist work.

Keeping the ground above freezing

Prevention usually means keeping vulnerable ground above freezing or separating it from the freezing conditions through an engineered foundation system. The correct approach follows a thermal assessment of the operating temperature, insulation, ground conditions, groundwater and building geometry.

Under-slab heating loops. A grid of pipes carrying warm glycol can replace heat lost through the floor. Electric heating cable can perform the same function where a wet system is unsuitable. Pipe material, spacing, output, circuit length and control temperatures must come from the thermal and mechanical design rather than a standard rule of thumb. The groundworks contractor installs and protects the system while coordinating its plant, controls and sensors with the mechanical and electrical team.

Recovered heat from the refrigeration plant. A refrigeration system rejects heat as it works. Where the operating strategy and backup provision allow it, some of that heat can feed the under-floor loops. The controls must still protect the floor during shutdown, maintenance or periods when recovered heat is unavailable.

A ventilated void. An air space below the floor can transfer ambient heat to the underside of the foundation. Its suitability depends on the calculated heat balance, airflow route, climate, store temperature and ability to inspect and maintain the void. It should not be selected from room temperature alone.

Whichever route is chosen, the frost-protection system is part of the foundation design. Active systems need accessible controls, temperature monitoring, alarms and a response plan for a loss of heat. A buried system that cannot demonstrate whether it is working leaves the operator with an unmanaged structural risk.

The floor build-up from the ground up

A cold store floor is a layered system, and the relationship between the layers matters. It commonly includes a prepared formation, frost-protection system, load-bearing insulation, vapour control layer and structural slab. Their precise sequence varies with the proprietary system and design, so the construction drawings must govern the installation.

The insulation has to achieve the calculated thermal resistance while carrying long-term loads without unacceptable compression or creep. Its type, thickness and compressive performance must suit the slab, racking and materials-handling loads. Substituting a board on thermal value alone can change how the floor behaves structurally.

The vapour control layer limits moisture migration towards the cold side of the build-up. Its position, vapour resistance and compatibility with joints, penetrations and perimeter details must be designed as a system. Poorly sealed laps or service penetrations can allow condensation to reduce insulation performance.

Get the sequence or the detailing of these layers wrong and there is no going back once the slab is down. Every one of them is buried.

Chilled or frozen changes the answer

Not every temperature-controlled building needs the same treatment, and pricing them all the same is a mistake in both directions. A chilled room presents a different heat-flow problem from a deep-freeze store, but room temperature is only one input. Soil, moisture, insulation, geometry, operating pattern and local climate also affect the answer.

The dividing line is a design decision that belongs with the refrigeration and structural engineers, not a rule of thumb, and it drives a large part of the foundation cost. The honest version of a cold store tender prices the actual operating temperature, not an assumption.

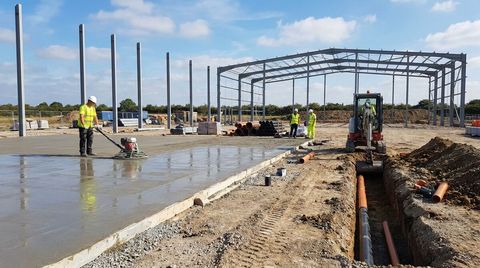

The slab still has to be a floor

Under all of this, the slab is still an industrial ground floor and still has to behave like one. It has to carry racking-leg point loads and materials-handling traffic, control joints and cracking, and achieve the flatness required by the racking and vehicle system. Slab thickness and reinforcement follow the structural and serviceability design; the cold-store build-up does not create a universal minimum thickness.

The Concrete Society’s Technical Report 34 provides recognised guidance on industrial ground-floor design, construction and flatness. High-bay racking and defined-movement vehicles can impose demanding tolerances. The structural floor and the thermally protected build-up therefore have to be designed together.

If the site also carries ground gas or radon risk, the protection strategy has to be coordinated with the cold-store build-up. BS 8485 covers protection against ground gases, while the UK radon maps provide an initial indication of radon potential. Site-specific assessment and product confirmation are still required. Membrane continuity, penetrations, temperature exposure and compatibility between layers must be resolved on the drawings.

What to inspect before the pour

Most of the critical work disappears beneath the slab, so the inspection and commissioning plan should be agreed before installation starts. It should identify who accepts each layer and what evidence is retained.

For a heated system, that normally means recording circuit layout and depth, pressure-testing pipework before and after covering, checking sensor locations, and protecting all connections. Insulation joints, membrane laps, penetrations and perimeter upstands should be inspected before they become inaccessible.

Commissioning should prove the controls, duty and standby arrangements, alarms and temperature readings. The operator also needs as-built drawings, test records, control set-points and a clear response procedure. These records turn a buried heating grid from an assumption into a maintainable asset.

You cannot retrofit this

Everything above comes back to one hard fact: the critical layers of a cold store foundation are buried beneath a fitted, operational floor. Adding insulation or replacing a heating circuit after the slab is complete is highly disruptive, and established frost heave may require extensive investigation and reconstruction.

That is why this work belongs with a contractor who has built cold stores before, who sequences the build-up correctly, who coordinates the frost protection and the slab and the drainage as one design with the refrigeration and structural engineers before anyone calls for concrete, and who treats the buried layers with the same care as the visible finish. The whole discipline is the same one that runs through the rest of food and cold-chain groundworks, which I have covered more broadly in our guide to groundworks for food manufacturing. Pour it once, in the right order, and the floor stays where you put it for the life of the building.
